Speciality / V-Cut Window Patching Machine

Fully Automatic V-cut 1050
Window Patching Machine

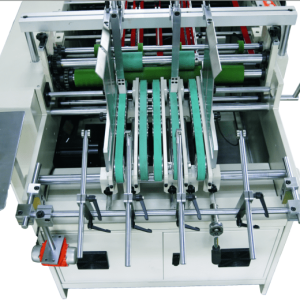

Sheet feeding Section

vcut-02
Intermitted belt conveying system using Servo motor and drive. Adjustment of blank size is done by computer HMI. The bottom friction feed belt works with start and stop motion with synchronize time with the machine chain conveying section. Multiple belts are equipped with gear and rack for easy movement and quick positioning. Fine control for feeder gate height adjustment.

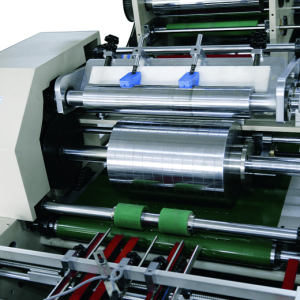

Gluing section

vcut-04
Single, high-hardened stainless steel tube roller for glue application. The glue roller can be adjusted for glue thickness with the help of sliding block. The stereo cylinder is hard chrome coated and with marking for easy fixing of stereo rubber. The stereo cylinder can be moved left or right, forward or backward to set the glue position accurately without stopping the machine. Glue roller can be pulled out for easy cleaning.

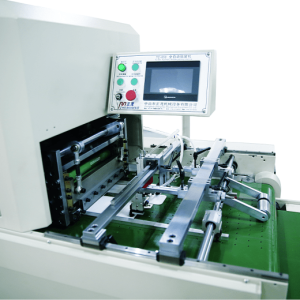

Window & V-Cut section

vcut-06
Servo control film feed system. Film length setting from computer and fine adjustment can be done while machine is still running. The unwinding section has electrical breaking system for smooth unwind. Balance roller ensure smooth feeding of film during start stop. Punching is done inline using high duty punch and each equipped with pneumatic piston. Any shape other than regular shapes can be punched. The carton and film is position in a stop condition and ensure very high position of the film on the cartons. Maximum deviation is +/- 0.5mm.

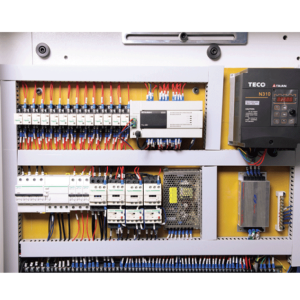

Control System

vcut-08

The machine works with PLC, HMI and servo control. All electronic components and detector are made from France, German, Taiwan, Japan etc,.

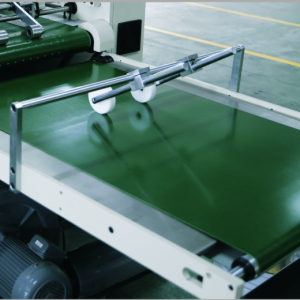

Delivery section

vcut-10

Soft belt conveying can prevent product damage, Motorised belt conveyor for even overlapping ensuring perfect quality.

Types of Window

Technical Specification

Model V – Cut 1050 (available in difference sizes)
Max. Sheet size (L)650 x (W)1050(mm)
Min. Sheet size (L)180 x (W)180(mm)
Max. Window  size (L)300 x (W)400 (mm)
Min. Window  size (L)50 x (W)50(mm)
Paper thickness 200-450gr/m², E Flute
Film thickness 0.1-0.25mm
Film thickness 0.25 – 0.40mm (with Heater roller)
Mechanical speed 6000 sheets / hour
Positioning accuracy ±0.5mm
Power Voltage 380v/50Hz
Machine Power 7.5KW
Machine Weight 4500KG

Specifications

Sheet feeding Section

  • Intermitted belt conveying system using Servo motor and drive. Adjustment of blank size is done by computer HMI. The bottom friction feed belt works with start and stop motion with synchronize time with the machine chain conveying section. Multiple belts are equipped with gear and rack for easy movement and quick positioning. Fine control for feeder gate height adjustment.

Gluing section

  • Single, high-hardened stainless steel tube roller for glue application. The glue roller can be adjusted for glue thickness with the help of sliding block. The stereo cylinder is hard chrome coated and with marking for easy fixing of stereo rubber. The stereo cylinder can be moved left or right, forward or backward to set the glue position accurately without stopping the machine. Glue roller can be pulled out for easy cleaning.

Window & V-Cut section

  • Servo control film feed system. Film length setting from computer and fine adjustment can be done while machine is still running.
  • The unwinding section has electrical breaking system for smooth unwind. Balance roller ensure smooth feeding of film during start stop.
  • Punching is done inline using high duty punch and each equipped with pneumatic piston. Any shape other than regular shapes can be punched. The carton and film is position in a stop condition and ensure very high position of the film on the cartons. Maximum deviation is +/- 0.5mm.

Control System

  • The machine works with PLC, HMI and servo control. All electronic components and detector are made from France, German, Taiwan, Japan etc,.

Delivery section

  • Soft belt conveying can prevent product damage, Motorised belt conveyor for even overlapping ensuring perfect quality.

Technical Specification

Model V – Cut 650 V – Cut 1050
Max. Sheet size (L)600 x (W)650(mm) (L)650 x (W)1050(mm)
Min. Sheet size (L)150 x (W)150(mm) (L)180 x (W)180(mm)
Max. Window size (L)300 x (W)300(mm) (L)300 x (W)400 (mm)
Min. Window size (L)50 x (W)50(mm) (L)50 x (W)50(mm)
Paper thickness 200-450gr/m2 , E flute 200-450gr/m2, E flute
Film thickness 0.1-0.25mm 0.1- 0.25mm
Mechanical speed 6000 sheets / hour 6000 Sheets /hour
Positioning accuracy ±0.5mm ±0.5mm
Power Voltage 380v/50Hz 380v/50Hz
Machine Power 5.5KW 7.5KW
Machine Weight 3500KG 4500KG
Overall Dimension (L)7200 x (W)1300 x (H)1600mm (L) 8458 X (W)1642 X(H)1600mm
