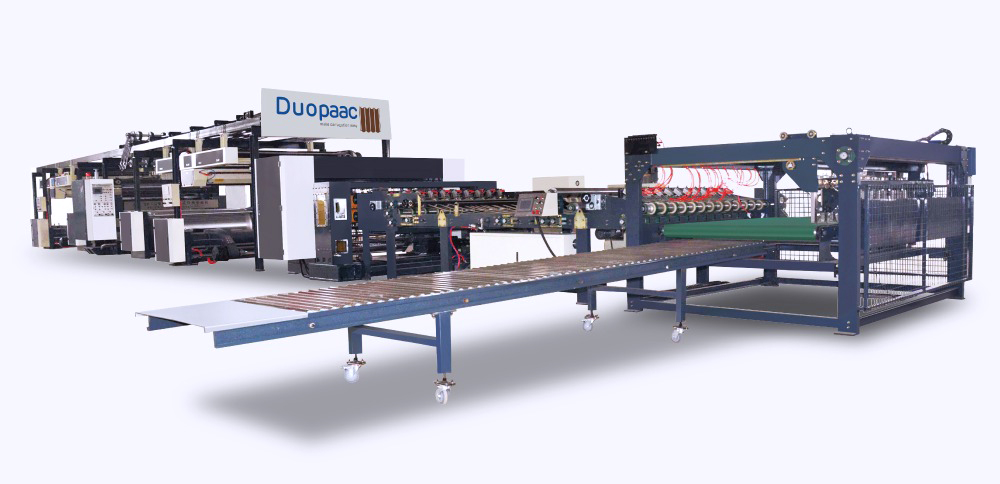

Single Facer / Corrugated Line

  • Moisture controlled 2 ply sheets with precision cutting to produce high quality 3 ply or 5 ply boxes.
  • Available with paper saving angle slot technology.
  • Available with technology for handling micro flutes – N to E flutes
  • High productivity.
  • Optimally priced configurations from simple corrugator to highly productive 2 ply line.
ModelFMZ-1260FMZ-1450FMZ-1650SAL-1300SAL-1450SAL-1650
Max. laminating size (mm)1260mmx1260mm1450mmx1450mm1650mmx1650mm1300mmx1300mm1450mmx1450mm1650mmx1650mm
Min. laminating size (mm)400mmx400mm500mmx500mm
Weight of top sheet (gsm)180~450gsm
Suitable bottom Sheet Corrugated0.5 to 8mm0.5 to 12 mm
Suitable Bottom Sheet CardboardApprox. 350 gsm to 2000 gsm
Laminating tolerance± 1.5 mm± 1mm
Production Speed (Depends on Sheet Length) 2000~6000s/h3000 – 12000 s/h
Total power rate (kw)16kw16kw20kw28kw28kw30kw
Total weight (kg)6800kg7500kg8400kg9900kg10700kg11600kg
Measurements (mm)13900x2110x306014500x2300x306015170x2500x306015700x3500x321016000x3650x321016350x3850x3210

*the specification and design may be modified or changed without prior notice.

*Option – Stacker at the end of delivery
