Suba’s Blankwiser transforms your packaging line by removing the last manual step—stripping and blanking—through smart, touch-free automation. It’s designed to boost your production speed, enhance quality, and cut down on operational costs, all while solving today’s toughest labor challenges. While others wrestle with inconsistencies and delays, you’ll be delivering precision at scale, effortlessly.
Hygienic Blanking Process
Zero Surface Contact, Maximum Hygiene
The pile never touches the table, ensuring scratch-free cartons with no human contact—ideal for pharma and food packaging.
Window Hole Removal Integration
Seamless Window Hole & Blanking Operation
Remove window holes and blank cartons in a single workflow with a dedicated waste collection system.
Built with Premium Components
Durable. Reliable. Low Maintenance.
Equipped with Schneider switchgear, THK screw rods, and SMC pneumatics for long-lasting performance.
10 Micron Positioning Accuracy
Precision that Powers High-Volume Jobs
Achieve flawless accuracy for complex jobs like ice cream lids, tags, and matchboxes (120+ ups).
Handles Complex Shapes with Ease
Single Cuts or Intricate Designs—Handled Perfectly
Efficiently processes both simple and complex jobs with high precision.
CE-Certified Safety & Expert Support
Worry-Free Operation & Unmatched Service
Operator safety assured with CE certification, backed by a responsive technical support team.
Automatic Die Cutter
Improve your productivity upto 30%
Automatic Flim Lamination
Suitable for METPET/BOPP cartons
High Speed Quality Inspection
Avoid Mix - up &
Rejection
Rejection
Automatic Folder Gluer
Reduce Wastages by
5 - 10%
5 - 10%
Automatic Window Patching
Remove Carton
window Holes
window Holes
Automatic Carton Erecting
Ensure Hygiene
Blanking
Blanking
Blankwiser - BW 96
Blankwiser - BW 106
Blankwiser - BW PT XL
Blankwiser - BW 96
| Module | BW 96 – Feature |
| Pile Loading & Navigation | Pile loaded in carrier – no bottom scratches or contamination |
| No need to clean table between blanking cycles | |
| High-end servo motors and drives | |
| Position accuracy – 10 microns | |
| Sensor for operator safety | |
| Customized parking position for operational comfort and productivity | |
| Larger carrier size 960mm X 760mm | |
| Equipped with THK Ball screws and Linear Guides for precision performance | |
| Blanking Station | Double head blanking |
| Balanced hydraulic system with two cylinders in bottom punch | |
| Optional 3rd head for window hole remover | |
| Safety mechanism for operator | |
| 2 waste slopes ensure undisturbed waste removal | |
| Robotic Pick-up Arm with Conveyor (Optional) | 2 robotic pick-up arms with straight conveyor |
| RPA picks up carton stacks and delivers on conveyor | |
| Reduces labour cost and improves productivity | |
| Promotes process hygiene | |
| Pneumatically operated maintenance-free movement | |
| Window Hole Remover (Optional) | Separate station to push out window holes |
| Touch Screen | Ease of operations |
| Easy programming | |
| Memory for 500 programs | |
| Electrical | Branded electrical and electronic components for reliable performance |
| ABB 5 HP motor and 45 LPM hydraulic pump with circuit protection | |
| 100-liter oil tank with high-capacity cooler maintains temperature below 50°C | |
| Pile Lifter (Optional) | Sensor-based pile auto up/down movement |
| Reduces operator fatigue | |
| Can be used on multiple machines for material handling |
Blankwiser - BW 106
| Module | BW 106 – Feature |
| Pile Loading & Navigation | Pile loaded in carrier – no bottom scratches or contamination |
| No need to clean table between blanking cycles | |
| High-end servo motors and drives | |
| Position accuracy – 10 microns | |
| Sensor for operator safety | |
| Customized parking position for operational comfort and productivity | |
| Larger carrier size (1060 x 1060 mm) for versatile sheet loading | |
| Equipped with THK Ball screws and Linear Guides for precision performance | |
| Blanking Station | Double head blanking |
| Balanced hydraulic system with three cylinders in bottom punch | |
| Optional 3rd head for window hole remover | |
| Safety mechanism for operator | |
| 2 waste slopes ensure undisturbed waste removal | |
| Robotic Pick-up Arm with Conveyor (Optional) | 2 robotic pick-up arms with straight conveyor |
| RPA picks up carton stacks and delivers on conveyor | |
| Reduces labour cost and improves productivity | |
| Promotes process hygiene | |
| Pneumatically operated maintenance-free movement | |
| Window Hole Remover (Optional) | Separate station to push out window holes |
| Touch Screen | Ease of operations |
| Easy programming | |
| Memory for 500 programs | |
| Electrical | Branded electrical and electronic components for reliable performance |
| Higher capacity oil chiller maintains temperature below 50°C | |
| ABB 10 HP motor and 59 LPM hydraulic pump with circuit protection | |
| 150-liter oil tank with high-capacity cooler maintains temperature below 50°C | |
| Pile Lifter (Optional) | Sensor-based pile auto up/down movement |
| Reduces operator fatigue | |
| Can be used on multiple machines for material handling |
Blankwiser - BW PT XL
| Module | BW PT XL |
| Pile Loading & Navigation | Pile Loaded in Flat form |
| Need to clean the table between blanking cycles | |
| High-end servo motors and drives | |
| Sensor for operator safety | |
| Blanking Station | Double head blanking |
| Safety mechanism for operator | |
| Touch Screen | Ease of operations |
| Easy programming | |
| Memory for 500 programs | |
| Electrical | Branded electrical and electronic components for reliable performance |
| Hydraulic System | Heavy duty 7.5 HP motor and hydraulic pump with protected circuits |
| 80-liter oil tank with high-capacity cooler maintains temperature below 50°C | |
| Pile Lifter (Optional) | Sensor-based pile auto up/down movement |
| Reduces operator fatigue | |
| Can be used on multiple machines for material handling |
| Model | Blankwiser 106 (Tool Type) |
Blankwiser 96 (Tool Type) |
Blankwiser PT XL (Pin type) |
| Max. Sheet size (mm) | 1060 x 1060 | 960 x 760 | 1080 x 780 |
| Min. Sheet size (mm) | 300 x 300 | 300 x 300 | 450 x 320 |
| Max. Blank size (mm) | 350 x 468 | 350 x 468 | 500 x 700 |
| Min. Blank size (mm) | 30 x 30 | 30 x 30 | 30 x 30 |
| Optional: RPA – Robotic pickup arm (min/max) with conveyor | 50 x 50 – 250 x 280 | 50 x 50 – 250 x 280 | N/A |
| Optional: W – Window hole remover (min to max) mm | 15 x 15 – 100 x 150 | 15 x 15 – 100 x 150 | N/A |
| Pile of paper high (mm) | 50 – 85 | 50 – 85 | 40 – 120 |
| Strokes/min *Output depends on sheet thickness, no. of ups, carton size etc. |
15 – 20 | 15 – 20 | 15 – 20 |
| Max. Work Stress (tons) | 2.5 | 1.5 | 2.5 |
| Power (kW) | 10 | 5 | 7.5 |
| Compressed air pressure requirement (bar) Compressed air pressure with conveyor (bar) |
6 / 8 | 6 / 8 | 8 / N/A |
| Machine Size (L × W × H) mm With conveyor (L × W × H) mm |
2700 x 3400 x 2200 2700 x 4400 x 2200 |
2415 x 2450 x 2025 3150 x 2450 x 2025 |
3720 x 1980 x 2030 N/A |
| Machine working area (L × W × H) mm With conveyor (L × W × H) mm |
4400 x 4800 x 2500 4400 x 5400 x 2500 |
3600 x 4300 x 2500 4300 x 4300 x 2500 |
5500 x 4500 x 2500 N/A |
| Weight (kg) With conveyor (kg) |
2000 2500 |
1500 2000 |
3200 |
| Make ready time (“Subject to operator skill and job type”) |
15 to 30 min | 15 to 30 min | 30 to 45 min |
Straight Line
Crash Lock Bottom Cartons

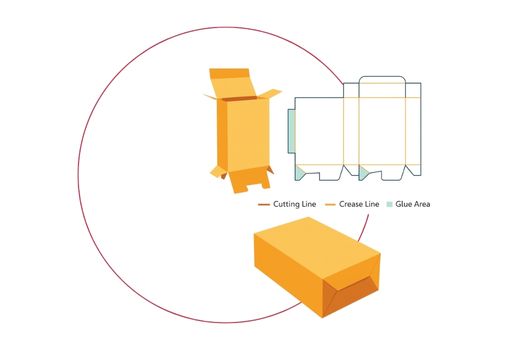

Snap Lock Cartons
Tag Packaging Jobs
Ice Cream Lid Packs
Window Patch Cartons
Small Size Cartons
Large Size Cartons
Food Cup Packaging
Burger Box Packaging
E-Flute Cartons
Straight/Double Wall Packs
Blankwiser frees it up—boosting efficiency by over 30%.
Touch-free blanking meets GMP & BRC standards.
1 operator + 1 helper can run 17–20M cartons/month.
Single-cut processing saves board on every job.
Blankwiser ensures uniform blanking, preventing carton damage and supporting smooth feeding in folder gluers.
Programmable operation ensures precise carton separation.
Built-in window-hole remover option
Handles multi-ups and complex layouts with consistent quality.
